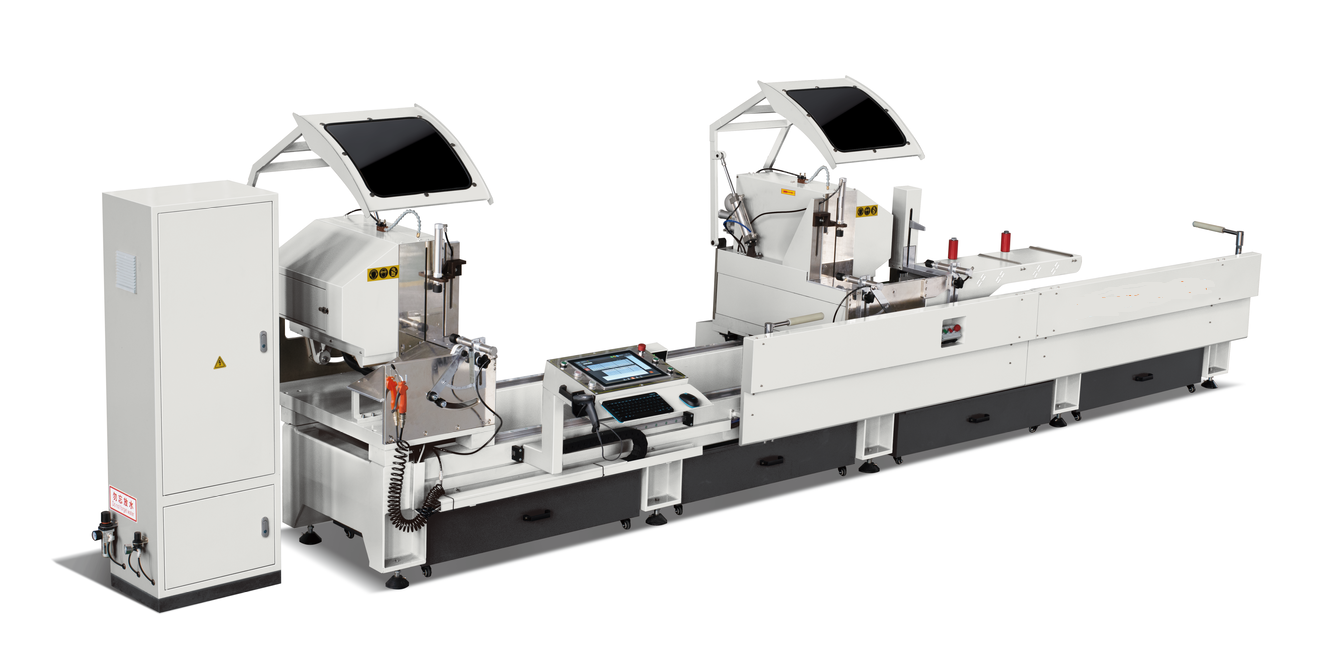

CNC DOUBLE HEAD SAW

Features:

1.     Automatic cutting Aluminum profile.

2.     EASYCUT controlling system driving machine moving and position automatically.

 High precision and easy operation.

3.     Right head is moving precisely under the drive of ball screw.

4.     The feeding system adopts imported linear guide pair, with high accuracy and stability.

5.     Auto 45°and 90°cutting change

6.     Imported linear guiding pair ensured steady processing accuracy.

7.     Saw blade rotates smoothly due to high accuracy spindle.

8.     Hydraulic feeding systems ensure precise and stable feeding.

9.     Middle auto-induction profile supporter and following profile supporter make

the loading and clamping convenient.

10.   Carbide saw blade is of accurate processing and high efficiency.

11.   Two heads can work together or single, when together work, one time can cut off the required length and

 Auto safety cover for safety operation.



Parameter:

Power supply：3N~50Hz 380/220V or As Customer Specification

Cutting motor power：2×2.2kw

Cutting motor rotary speed：2800r/min

Operation air pressure：0.5～0.8MPa

Air consumption：60L/min

Blade specification：ø500×ø30×4.4×Z120

Cutting speed：stepless speed regulation0～3m/min

Max. cutting length：4200 mm

Min. cutting length：450 mm

Cutting width：max 135mm

Cutting height：900:  max  300mm        450:  max  200mm

Cutting angle: 90°、45°、67.5°（spare）

Repeat locating length tolerance：±0.2mm

Cutting profile surface plane：≤0.10mm

Cutting angle tolerance：±5′

Cutting profile surface roughness：Ra12.5µm

Contour dimension：5960 mm×1750mm×1950mm

Weight：2000g



Main accessory:
• Controlling system: EASYCUT

• Saw blade------ Uniken
• Solenoid valve------ AIRTAC

• Cylinder------AIRTAC
• Motor----SPINDLE MOTOR
• Air Filter Device: ----STNC

• Electrical Button and Switcher----Schneider

• AC Contactor and Circuit Breaker----- Schneider

• Approach Switcher ----- Turck

• Linear Bearing System ----- HIWIN



Standard accessory:
• Saw blade:                   2pcs                         • Mobile work piece supports           2set

• Air Gun:                      1pc                          • Complete tooling :                  1set

• Certificate:                   1pc                          • Operation Manual:                   1pc

• Coolant Spray Device         2pcs

Optional Device:

• Dust Collector System extra cost
