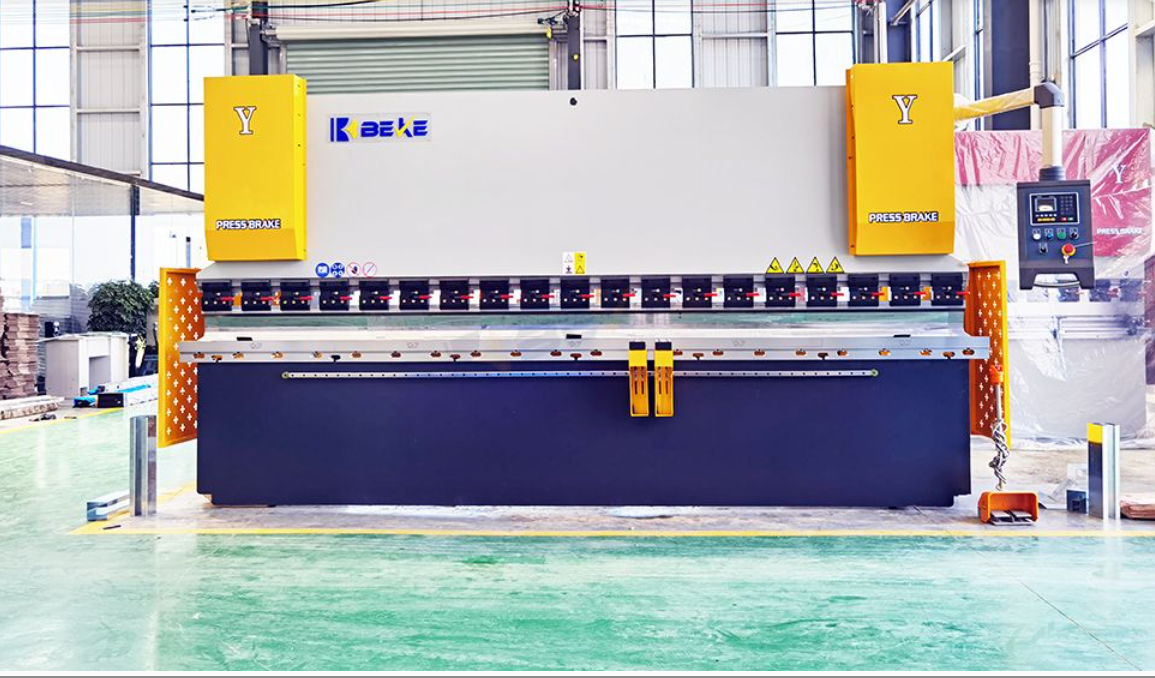

CNC Press Brake E200P

E300P/E200P

Main Features:

Totally EU streamlined design,Monoblock by welding robots & apparatus, and stress relief process by Annealing treatment.

–WC67K Series E300P/200P Servo CNC press brake machine body is welded steel in structure with high strength and good stability.

–The frame of the hydraulic press brake machine is finished by a large floor boring and milling machine to ensure high precision.

–E300P system works with servo motors for X, Y, and R axis movement.

–Regarding the control systems, ESTUN-E300P is upgraded from E200P. Use Servo motors for X and Y axis instead of step motors. R axis is available with servo motor as well.

–Similar controller with same function TP10S .

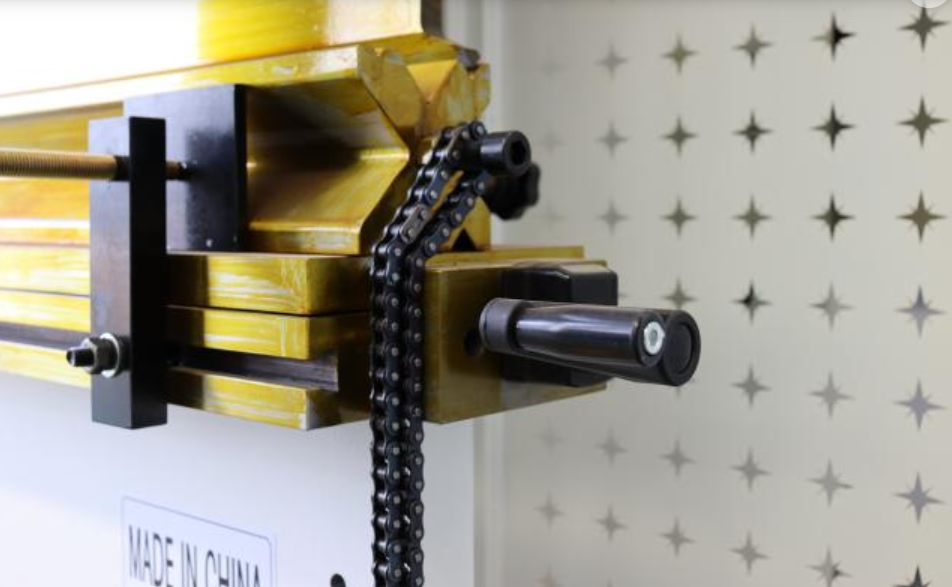

–For hydraulic press brake machine working table, compensation table can be used instead of ordinary table to ensure the bending angle. For this, we have two options: manual crowning and mechanical crowning.

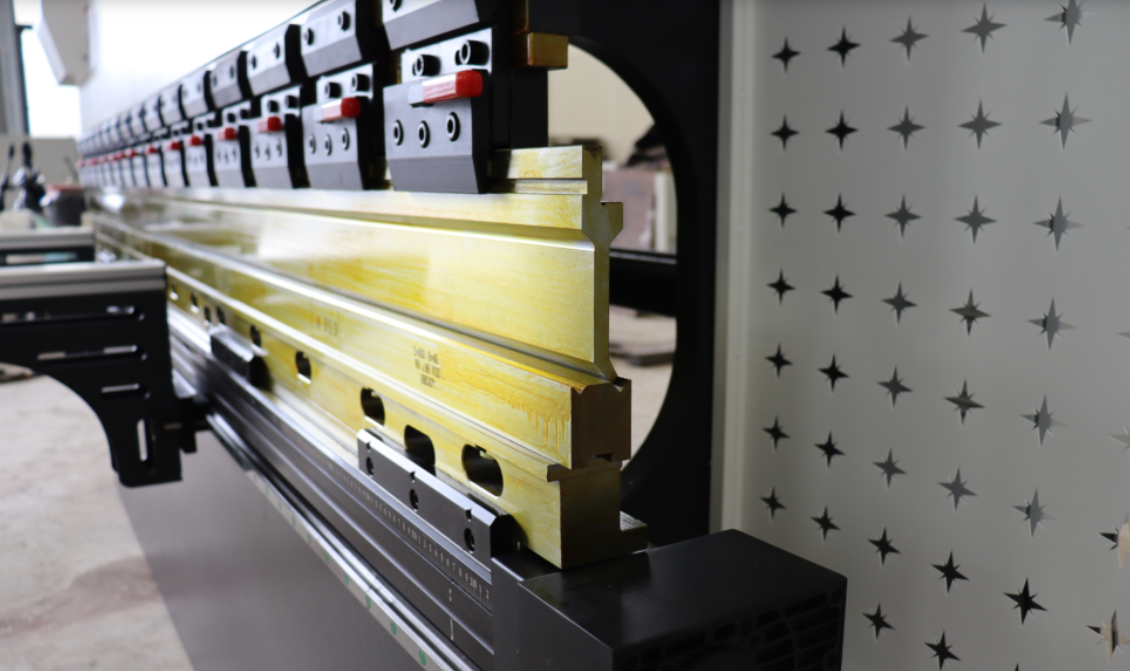

–Usually we use multi-V dies as our standard die. We have another option is double-V die, that is supporting low die mentioned and easy to take away and choose different V channel.

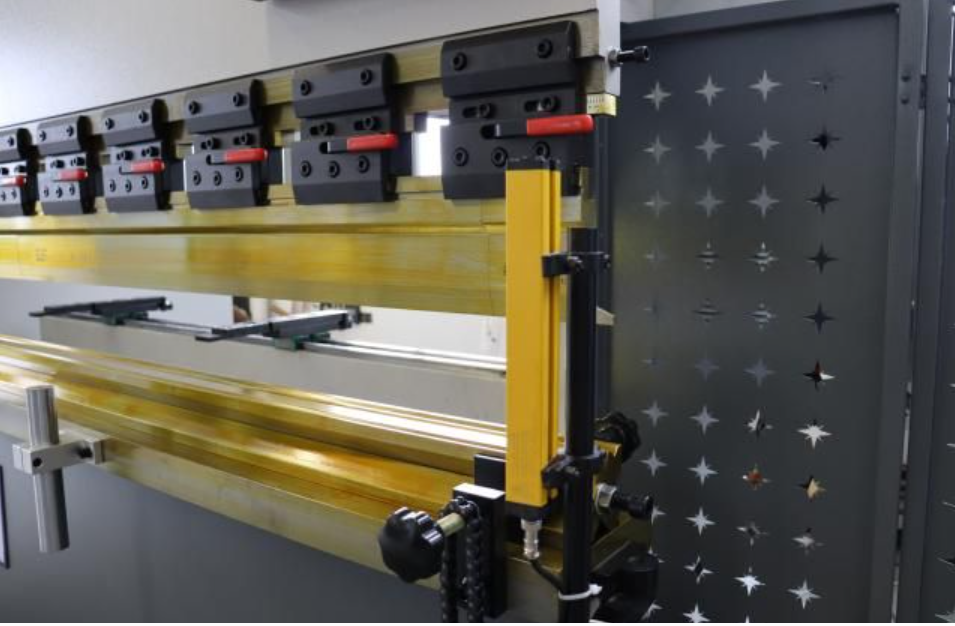

–For CE or NR-12 quality standard system, hydraulic press brake machine may need to install light curtain or laser protection device to prevent injury from working process

Main Configuration:

No	Accessory	Manufacture/Model

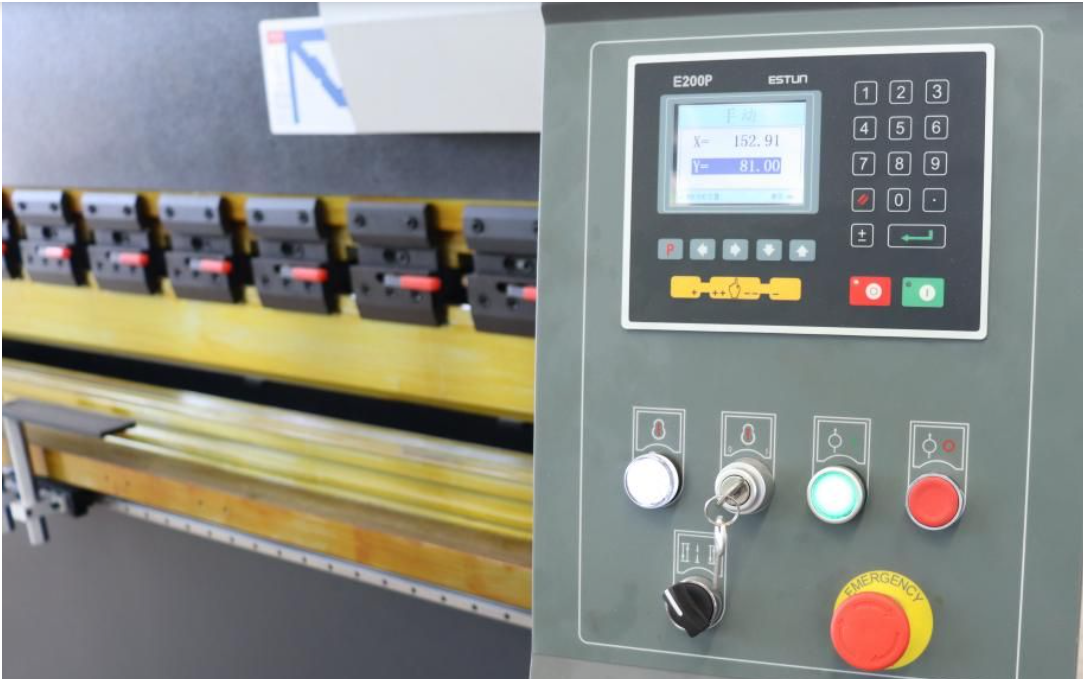

1	CNC control system	E300P/E200P

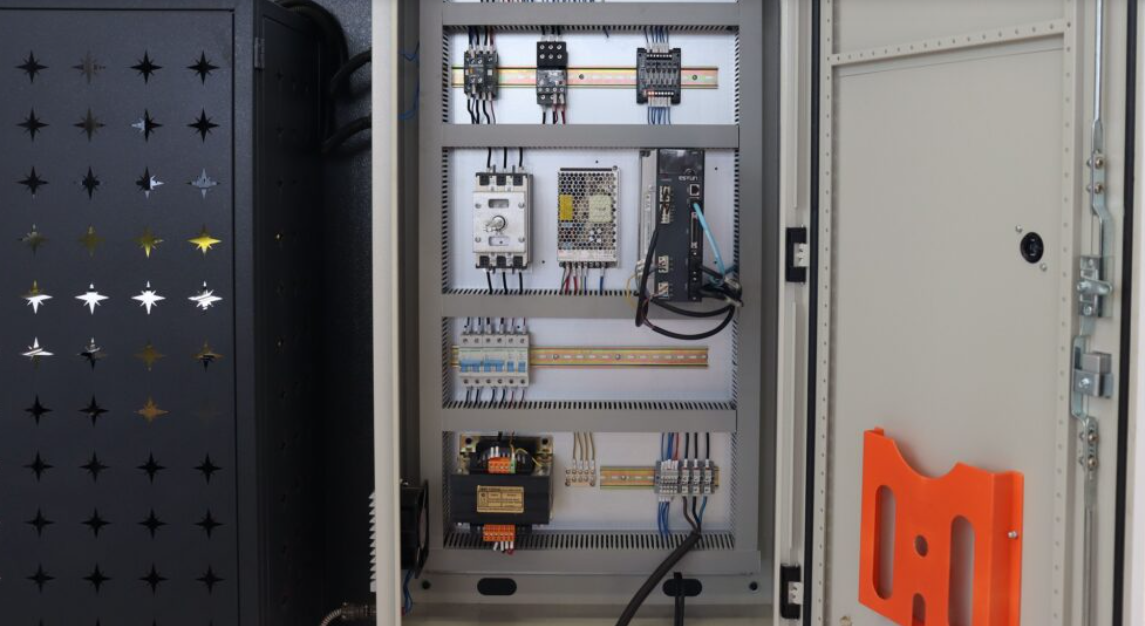

2	Electrics	France Schneider

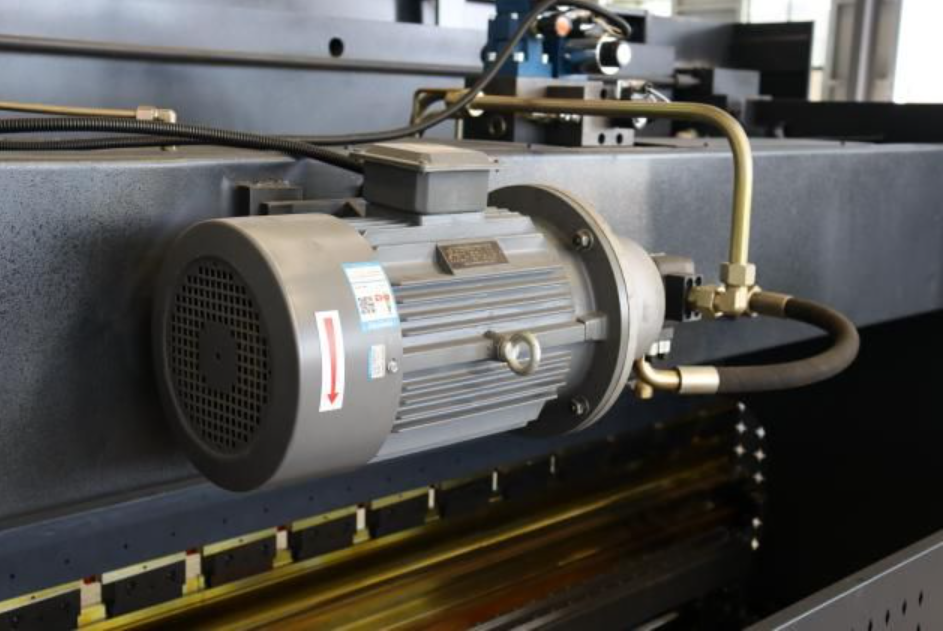

3	Main motor	BEIDE SIEMENS
4	Back gauge, synchronous belt, synchronous wheel	China

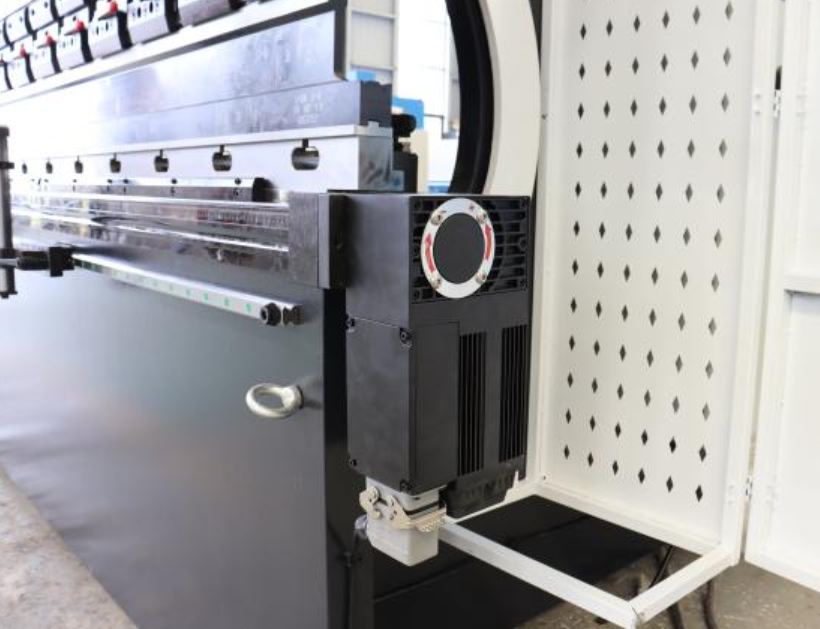

5	Servo motor and servo drive	Estun
6	Sealing ring	German BAUSER and Busak+Shamban
7	Foot switch	South Korea KACON
8	Oil tube connector	Germany EMB
9	Oil pump	America Sunny high performance and low noise internal gear pump
10	Hydraulic system	Bosch-Rexroth

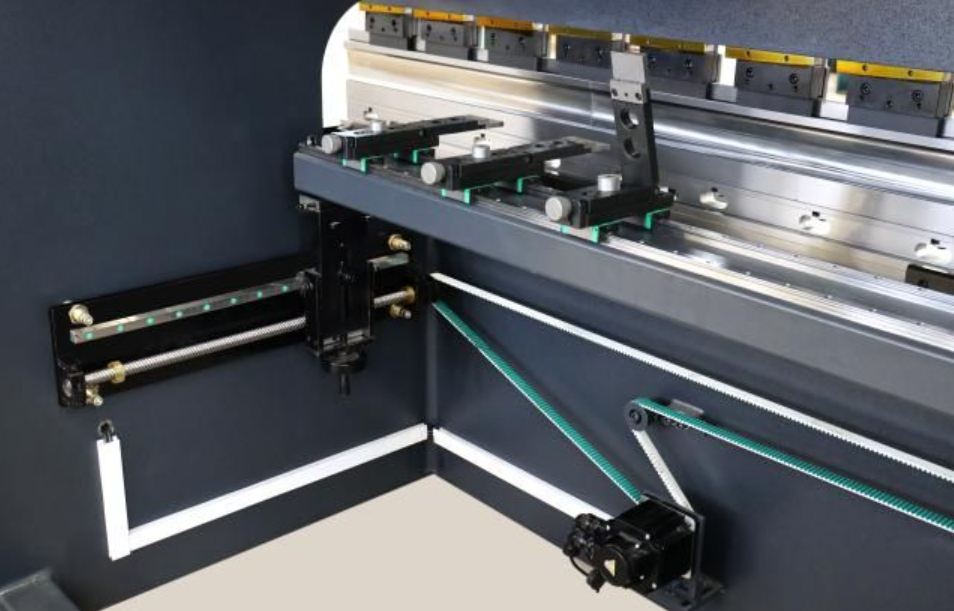

11	Back gauge	Ball screw and linear guide rail from Taiwan
12	Oil Cylinder	Chinese famous brand Wuyang
13	Side and back safety guard	BEKE
14	Die	One set standard multi-V die
15	Clamping	Quick clamp

Technical Details

Model	Bending Pressure (kn)	Bending Length (mm)	Vertical Column Distance (mm)	Throat Depth (mm)	Slider Strokr (mm)	Max. opening Height (mm)	Y-axis Downward Speed (mm/sec)	Y-axis Back Stroke Speed (mm/sec)	Bending Angle Precision (°)	X-axis Max. Distance (mm)	Workpiece Linearity (mm/m)	Backgauge Accuracy (mm/m)	Sliding Front Supporting Arms(PCS)	Back Stopper (PCS)	Main Motor (kw)	LWH (mm)	Weight (T)
30T/1600	300	1600	950	230	100	320	80	70	＜±40	300	0.5	0.05	2	2	3	180012001620	2000
40T/1600	400	1600	950	230	100	320	80	70	＜±40	300	0.5	0.05	2	2	3	180012001820	2500
40T/2200	400	2200	1850	230	100	320	80	70	＜±40	500	0.5	0.05	2	2	5.5	220012001900	2750
40T/2500	400	2500	1850	230	100	320	80	70	0.5	500	0.5	0.05	2	2	5.5	250012001900	3000
50T/2500	500	2500	1850	230	100	320	80	70	0.5	500	0.5	0.05	2	2	5.5	250012002000	3400
63T/2500	630	2500	1990	250	100	320	80	70	0.5	500	0.5	0.05	2	2	5.5	250013002210	4000
63T/3200	630	3200	2560	250	100	320	80	70	0.5	500	0.5	0.05	2	3	5.5	320013002210	4800
80T/2500	800	2500	1990	300	100	320	80	70	0.5	500	0.5	0.05	2	2	7.5	250014002300	5000
80T/3200	800	3200	2560	320	100	350	80	70	0.5	500	0.5	0.05	2	3	7.5	320015002300	6000
80T/4000	800	4000	3200	320	100	350	80	70	0.5	500	0.5	0.05	2	4	7.5	400015002400	7000
100T/2500	1000	2500	1990	320	120	350	80	70	0.5	500	0.5	0.05	2	2	7.5	250016002400	6000
100T/3200	1000	3200	2600	320	150	400	80	70	0.5	500	0.5	0.05	2	3	7.5	320016002600	6800
100T/4000	1000	4000	3200	320	150	400	90	82	0.5	500	0.5	0.05	2	4	7.5	400016002600	8000
125T/3200	1250	3200	2600	320	150	400	90	82	0.5	500	0.5	0.05	2	3	11	320016002600	7000
125T/4000	1250	4000	3200	320	150	400	90	82	0.5	500	0.5	0.05	2	4	11	400016002600	8500
160T/3200	1600	3200	2580	320	200	460	90	86	0.5	500	0.5	0.05	2	3	11	320017002700	10000
160T/4000	1600	4000	2900	320	200	460	90	86	0.5	500	0.5	0.05	2	4	11	400017002800	11000
160T/5000	1600	5000	3900	320	200	460	90	86	0.5	500	0.5	0.05	2	5	11	500019003100	13500
160T/6000	1600	6000	4900	320	200	460	90	86	0.5	500	0.5	0.05	2	6	11	630019003200	18500
200T/3200	2000	3200	2480	320	200	460	90	86	0.5	500	0.5	0.05	2	3	11	320019502800	11000
200T/4000	2000	4000	2900	320	200	460	90	86	0.5	500	0.5	0.05	2	4	11	400019502800	12500
200T/5000	2000	5000	3900	320	200	460	90	86	0.5	500	0.5	0.05	2	5	11	500019503000	14000
200T/6000	2000	6000	4900	320	200	460	90	86	0.5	500	0.5	0.05	2	6	11	600019503300	20000
250T/3200	2500	3200	2450	400	250	590	90	86	0.5	500	0.5	0.05	2	3	18.5	325020003200	18500
250T/4000	2500	4000	2900	400	250	590	90	86	0.5	500	0.5	0.05	2	4	18.5	400020003400	20000
250T/5000	2500	5000	3900	400	250	590	90	86	0.5	500	0.5	0.05	2	5	18.5	500020003400	23000
250T/6000	2500	6000	4900	400	250	590	90	86	0.5	500	0.5	0.05	2	6	18.5	600020003400	27000
300T/3200	3000	3200	2450	400	250	590	90	86	0.5	500	0.5	0.05	2	3	22	320020003450	20500
300T/4000	3000	4000	2900	400	250	590	90	86	0.5	500	0.5	0.05	2	4	22	400020003450	22000
300T/5000	3000	5000	3900	400	250	590	90	86	0.5	500	0.5	0.05	2	5	22	500020003450	25000
300T/6000	3000	6000	4900	400	250	590	90	86	0.5	500	0.5	0.05	2	6	22	600020003450	28500
400T/3200	4000	3200	2400	400	250	590	90	86	0.5	500	0.5	0.05	2	3	30	320021803400	22500
400T/4000	4000	4000	2900	400	250	590	90	86	0.5	500	0.5	0.05	2	4	30	400021803400	25000
400T/5000	4000	5000	3900	400	250	590	90	86	0.5	500	0.5	0.05	2	5	30	500021803500	29000
400T/6000	4000	6000	4900	400	250	590	90	86	0.5	500	0.5	0.05	2	6	30	600021803800	34000
500T/5000	5000	5000	3900	400	250	590	90	86	0.5	500	0.5	0.05	2	5	45	505035003700	42000
500T/6000	5000	6000	4900	400	320	590	90	86	0.5	500	0.5	0.05	2	6	45	605035003700	54000
600T/4000	6000	4000	2900	400	320	590	90	86	0.5	500	0.5	0.05	2	4	55	405045003700	44000
600T/6000	6000	6000	4900	400	320	590	90	86	0.5	500	0.5	0.05	2	6	55	605045003700	60000
