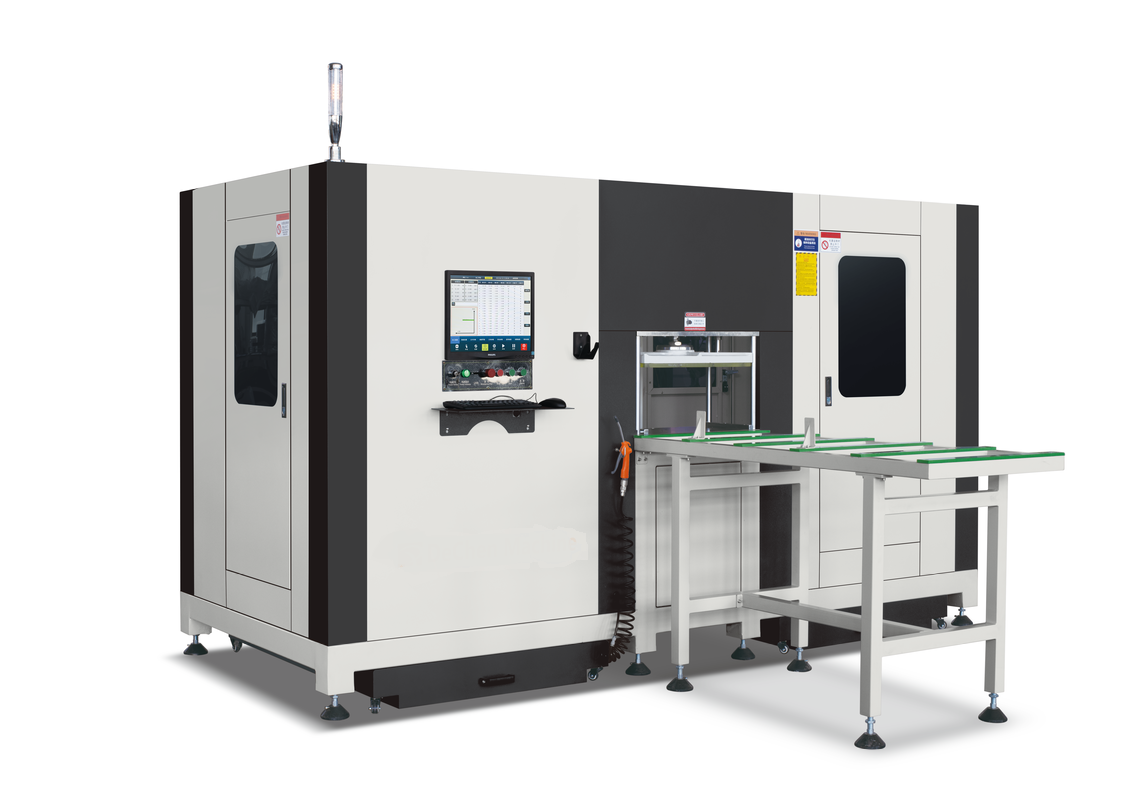

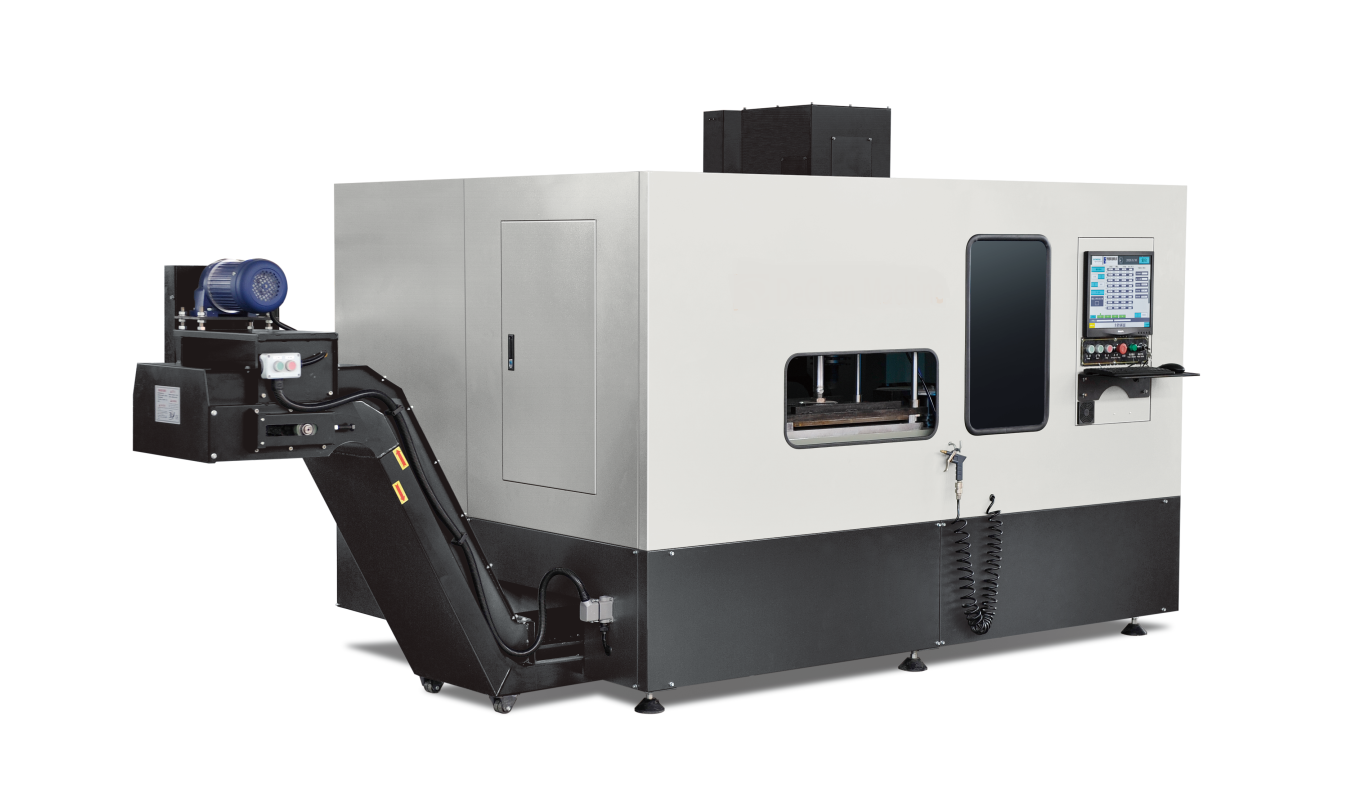

CNC 3 AXIS END MILLING MACHINE


Features:
1. Cnc 3 Axis End Milling Machine is suitable for processing of all kinds of profile end face and step surface in window and door fabrication
2. 3-axis automatically end milling machine, no need change end milling cutters, no need additional end milling cutter cost.
3. High processing accuracy done by CNC program, easy operation.

4. One set of blade fixed on the high-speed shaft motor, moving in 3 axis.
5. Same section with different length profile can be milled in one time. High volume production.
6. The feeding system is driven by servo motor, the speed and position are adjustable, , the cutting performance very smooth  and high speed.

7. Safer and less noisy by fully Cover(option)



Main Accessory


linear guide

GEAR CHINA

Cylinder

 Air TAC(Taiwan)

Electrical Button and Switcher

CHNT

Spindle motor

CHINA   TOP 10

Servo motor

DELTA( TAIWAN)

Touch screen

 DELTA (TAIWAN)



Parameter:


Power Supply

3N~50HZ 380V or customized

Total Power

6KW

milling motor power

3kw

Motor Rotatry Speed

3000   r/min

Milling cutter

Φ300-350

Operation Air Pressure

0.50.8MPa

Air Consumption

200L/min

Motor main shaft diameter

φ30mm

Feeding space of workable

1000mm

Milling cutter number

1 sets

Workable measurement

420×400   mm

Overall Dimension

1700×1500×1700   mm

Weight

1500kg



More information:

SAMILAR OPTIONAL MODEL.

CNC 3+1( ROTATE MOTOR WITH 1 BLADE)

CNC 3+2( ROTATE MOTOR WITH2 BLADES)
